How to Connect a Solar Panel to Your Power Station Safely

A power station, often called a solar generator or portable power station, is a compact energy storage device that permits you to keep electricity for later use. These gadgets combine a battery pack, an inverter, and multiple input/output ports to power a wide array of gadgets from smartphones to mini refrigerators without the need for grid electricity.Modern power stations can be recharged utilising electrical outlets, vehicle chargers, or solar panels. The photovoltaic panel technique, while slower, is ideal for eco-conscious users looking to harness eco-friendly energy in remote places or during power interruptions.

Why Use Solar Panels to Charge a Power Station?

There are several benefits to using solar panels as a charging method.

• Sustainability: Solar energy is clean, eco-friendly, and emission-free.


• Mobility: Lightweight photovoltaic panels can be transported quickly for camping or travel.


• Cost Efficiency: After the preliminary investment, sunlight is free.


• Energy Independence: Solar charging lets you run entirely off-grid.



But despite these advantages, security and compatibility are crucial concerns– especially when handling different voltages, connectors, and brands.

What Are MC4 Connectors?

MC4 (Multi-Contact 4mm) adapters are the market requirement for photovoltaic panel electrical wiring. Created to make connections easier and safer, MC4 adapters are:

• Waterproof (IP67 rated).


• UV resistant.


• Lockable, avoiding unexpected disconnections.


• Rated for high voltage, ensuring they’re safe for the majority of home and portable systems.



Their universal appeal lies in their basic plug-and-play system, making them ideal for those brand-new to solar setups.

Elements You Need for a Safe Connection

Before starting the setup, make sure you have the following:

• A photovoltaic panel with MC4 ports.


• A portable power station with a compatible input voltage.


• MC4 to DC adapter cable television (or Anderson cable, depending upon your power station).


• A solar charge controller (optional, typically constructed into modern stations).



The most crucial point is voltage compatibility. If your photovoltaic panel provides more voltage or current than your power station can handle, you risk harming your system.

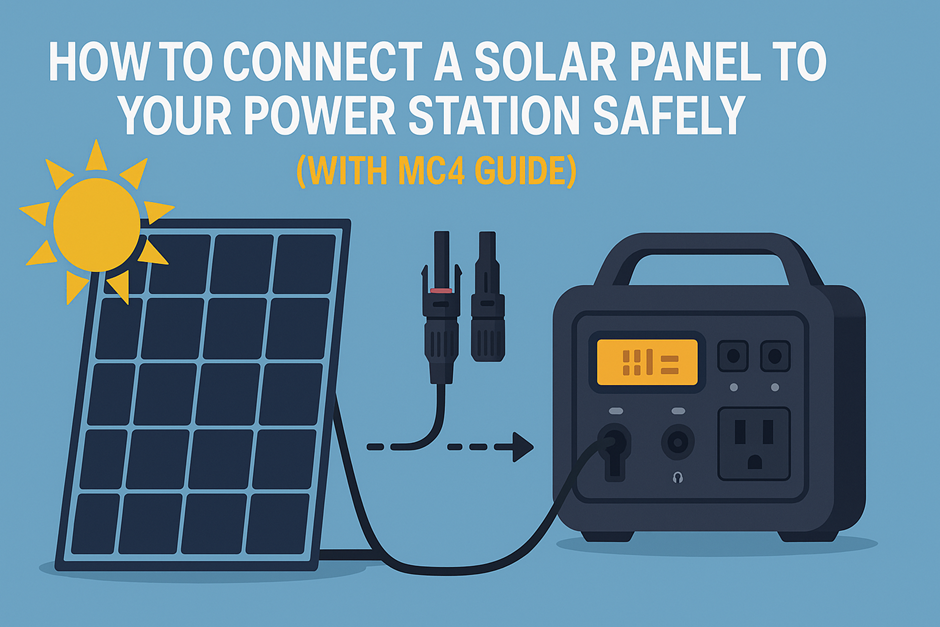

Step-by-Step Guide to Connecting a Solar Panel Using MC4 Connectors

Step 1: Identify the Input Port on Your Power Station

Many power stations have several input ports, such as DC5521, XT60, Anderson, and even MC4 directly. Check the voltage and existing limits near the port or in the user handbook. For example, a 500W power station might accept 12-28V DC input at up to 8A.

Step 2: Match Your Adapter Cables

Your photovoltaic panel will likely have male and female MC4 adapters. If your power station does not have MC4 ports, you’ll need an MC4-to-DC adapter cable. These adapters usually feature several interchangeable heads to match different power stations.

Constantly utilise cables rated for outdoor usage and check for any noticeable wear or damage.

Step 3: Position the Solar Panel Correctly

Position the solar panel in direct sunlight, ideally at an angle of 30-45 degrees facing the sun. Make certain there are no shadows, as even partial shading can significantly minimise performance.

Pro tip: Clean the surface of the panel with a soft cloth for optimal output.

Step 4: Connect the MC4 Connectors

Connect the MC4 male from the panel to the female on the adapter cable, and vice versa. You should hear a click– this indicates a protected connection.

Beware not to cross wires. MC4 ports are designed to prevent reverse polarity; however, mistakes can still occur if they are forcibly connected.

Step 5: Plug the Adapter into the Power Station

Once the MC4 connection is made, plug the other end of the cable television into your power station’s input. Your power station should recognise the solar input automatically and start charging.

Some power stations show the incoming wattage or charging time remaining. Use this to evaluate sunshine performance.

MC4 Connector Safety Tips

• Never connect or disconnect MC4 adapters while power is flowing; disconnect them from the power station initially.


• Prevent contact with water or moisture while making connections.


• If you’re uncertain, utilise a voltage meter to verify polarity and voltage.


• Please do not exceed the current ranking of your cable televisions or adapters, as they may get too hot.



MC4 connectors are trusted and safe, however, only when used appropriately. They are not a foolproof replacement for caution.

Common Mistakes to Avoid

In years of working with solar setups, one recurring problem I’ve seen is users connecting mismatched voltage sources. One customer unwittingly used a 48V panel with a 12V-rated power station, resulting in permanent battery damage.

Another issue develops from ignoring the polarity of the cables. Though MC4 connectors are keyed, DIY setups in some cases require incompatible parts together, triggering shorts.

The very best recommendations: read manuals thoroughly and confirm all specs. Solar devices are a financial investment, and safeguarding that financial investment begins with careful setup.

Fixing Tips

• Issue: Power station not charging.
   Option: Check if the panel is getting sunlight and verify that all cable televisions are firmly connected.


• Issue: Very sluggish charging.
   Solution: It might be because of overcast conditions or partial shading. Try repositioning the panel.


• Problem: The Input wattage shows no.
   Service: Use a multimeter to examine voltage throughout the MC4 terminals. The panel may be defective if the voltage is too low or zero.



Selecting the Right Solar Panel for Your Power Station

Not all photovoltaic panels are developed equally. When selecting one, consider:

• Wattage rating: Higher wattage suggests quicker charging.


• Voltage output: Must match your power station’s input.


• Portability: Foldable panels are ideal for mobile usage.


• Durability: Weather-resistant panels last longer in outdoor setups.



Panels in the 100–200W variety are usually suitable for most 300–1000Wh power stations.

Real-World Use Case: Camping with a Solar Power Setup

Last summer, I went off-grid camping in the Rockies. I brought a 500Wh power station and a 120W foldable solar panel. With complete sun, the panel recharged the station in under 6 hours daily. I powered LED lights, charged two phones, ran a drone, and even used a tiny electrical stove for brief durations.

The essential takeaway? Matching panel wattage and power station capacity is critical for undisturbed outdoor power.

Last Thoughts: Harnessing Solar Power the Proper Way

Linking a photovoltaic panel to your power station is not just possible– it’s easy, safe, and effective if you follow the ideal actions. MC4 adapters streamline the process, but your attention to detail ensures durability and performance.

Whether you’re preparing for emergencies, planning a van life journey, or just minimising your carbon footprint, understanding the essentials of solar integration can make your shift smoother.

Frequently Asked Questions

How long does it take to charge a power station with a solar panel?

Charging time depends on photovoltaic panel wattage, sunshine strength, and the capability of the power station. A 500Wh power station with a 100W panel in full sun may take 6–8 hours to charge fully.

Do all power stations support solar panel charging?

Not all do. If your system accepts solar input and verifies voltage/current compatibility, it is essential to examine it constantly. Some models require particular adapters or built-in MPPT controllers.

Can I link several panels at the same time?

Yes, as long as the total voltage and current stay within the limitations of the power station’s input. Use Y-branch MC4 connectors to wire panels in parallel for increased current without raising voltage.

Is an MC4 connector compulsory for photovoltaic panels?

A lot of contemporary panels include MC4 ports for compatibility and safety. While not necessary, they are highly suggested for safe, secure, and weatherproof connections.

Can I use extension cables with MC4 connectors?

Absolutely. Make certain the cable televisions are thick enough (e.g., 10 AWG) to manage the current without considerable voltage drop, particularly over long distances.
